1. Capable of 3D parabolic movement without any S/W
   operation in contrast to up-an-down lifts.
2. In case of interruption of air supply, a built-in safety device
   prevents the load from falling down.
3. Power for handling is needed only for 1/100 of the weight of
   a load.
4. By improving swiftness and precision of work, this Balance
    Lift can make your work three times as efficient as normal
    lifts can.
5. A built-in automatic sensor of weight protects equipment
   from overweight.
6. According to the type of attachments, this Balance Lift
   serves various functions.

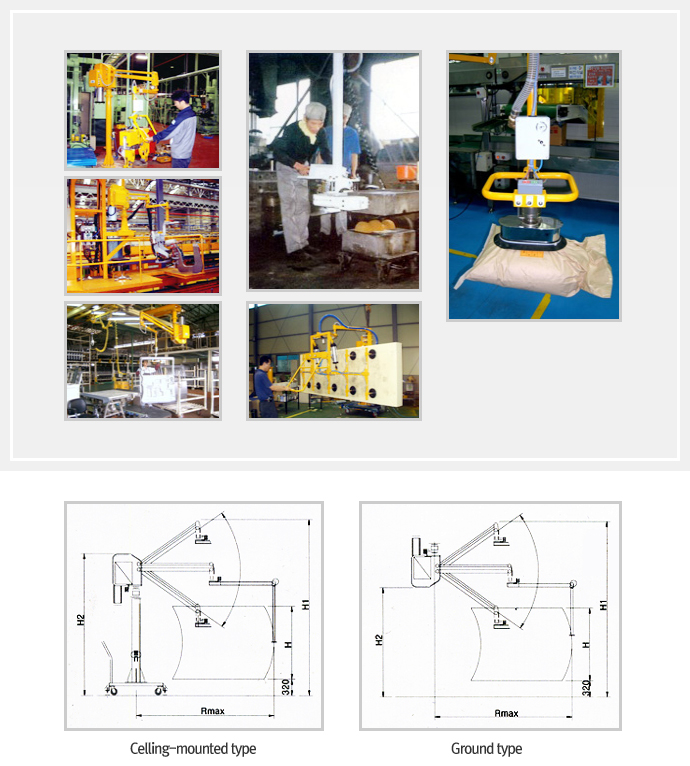

ABS TYPE (Ground type, Ceiling - mounted type)
- The measurements below can change depending upon the on-site conditions

MODEL	CAPACITY (kg)	MOUNTING	H	H1	H2	R max	Net Weight kg	MOUNT kg
ABS-60	60	fix · mobile	1500	3149	2556	2430	106	345
ABS-75	75		1500	3149	2556	2430	106	410
ABS-100	100		1600	3242	2652	2430	132	490
ABS-150	150		1600	3268	2678	2430	154	640
ABS-200	200		1600	3288	2698	2520	220	850
ABS-250	250	fix	1600	3350	2758	2520	360	960
ABS-350	350	fix	1600	3350	2758	2520	400	960
ABS-480	480	fix	1600	3350	2758	2520	480	-

1. Using air pressure over 5.0kgf/cm
2. Movable type of ABS 200 and more are movable fork type.
3. Capacity indicates the weight of products and fixtures.

ABS TYPE(Ground type, Ceiling - mounted type)
- The measurements below can change depending upon the on-site conditions.

MODEL	CAPACITY (kg)	MOUNTING	H	H1	H2	R max	본체중량 kg	MOUNT kg
ABS-60	60	fix · mobile	1500	3149	2556	2430	106	345
ABS-75	75		1500	3149	2556	2430	106	410
ABS-100	100		1600	3242	2652	2430	132	490
ABS-150	150		1600	3268	2678	2430	154	640
ABS-200	200		1600	3288	2698	2520	220	850
ABS-250	250	fix	1600	3350	2758	2520	360	960
ABS-350	350	fix	1600	3350	2758	2520	400	960
ABS-480	480	fix	1600	3350	2758	2520	480	-

1.Using air pressure over 5.0kgf/cm
2. Movable type of ABS 200 and more are movable fork type.
3. Capacity indicates the weight of products and fixtures.
