1. Outstanding performance where the ceiling is low
2. Easy to change the working radius if needed.
3. Adopting an all-air circuit method(electricity free).
4. Simplicity and safety of its system, compared to other
equipment for conveyance, lead to highly efficient work.
5. In case of interruption of air supply, a built-in safety device
prevents the lod from falling down.
6. This Balance Lift has a wide range of applications by using
attachments according to various purposes of work.
|
|
 |
 |
 |
| |

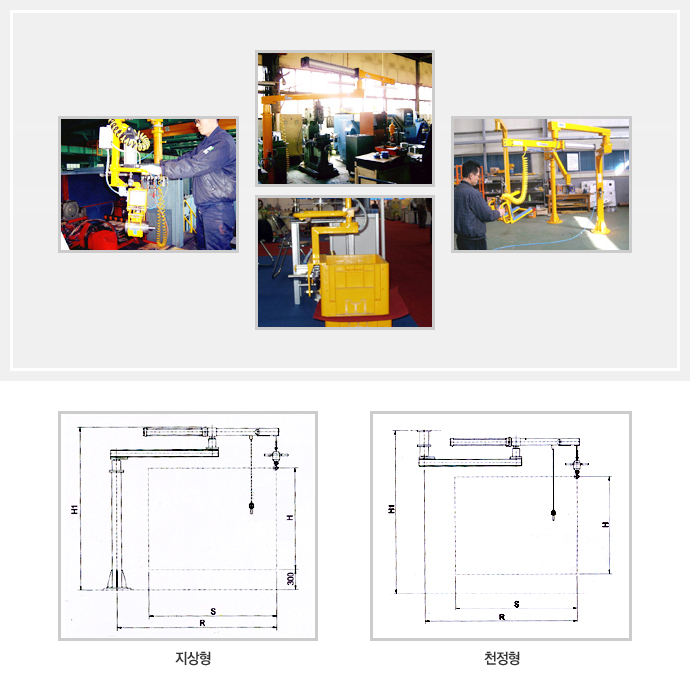

| Ground type |
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R
|
Net Weight
kg
|
MOUNT
kg
|
|
ABK-120
|
120
|
fix
|
1450
|
2570
|
2115
|
2360
|
96
|
30
|
|
mobile
|
1450
|
2570
|
2115
|
2360
|
96
|
640
|
|
|
1. Using air pressure over 5.0kgf/ cm
2. Possible to modify the R value.
* Capacity indicates the weight of products and fixtures.
|
| Ceiling-mounted type |
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R max
|
Net Weight
kg
|
MOUNT
kg
|
|
ABK-120
|
120
|
fix
|
1450
|
2570
|
2115
|
2360
|
96
|
25
|
|
|
1. Using air pressure over 5.0kgf/ cm
2. Possible to modify the R value
* Capacity indicates the weight of products and fixtures.
|
|
|
|
|
|
