1. Outstanding performance where the ceiling is low.
2. In case of interruption of air supply, a built-in safety device
prevents the load from falling down.
3. Power for handing is needed only for 1/100 of the weight
of a load.
4. By improving swiftness and precision of work, this Balance
Lift can make your work three times as efficient as normal
lifts can.
5. A built-in automatic sensor of weight protects equipment
from overweight.
6. According to the type of attachments, this Balance Lift
serves various functions.
|
|
 |
 |
 |
| |
|

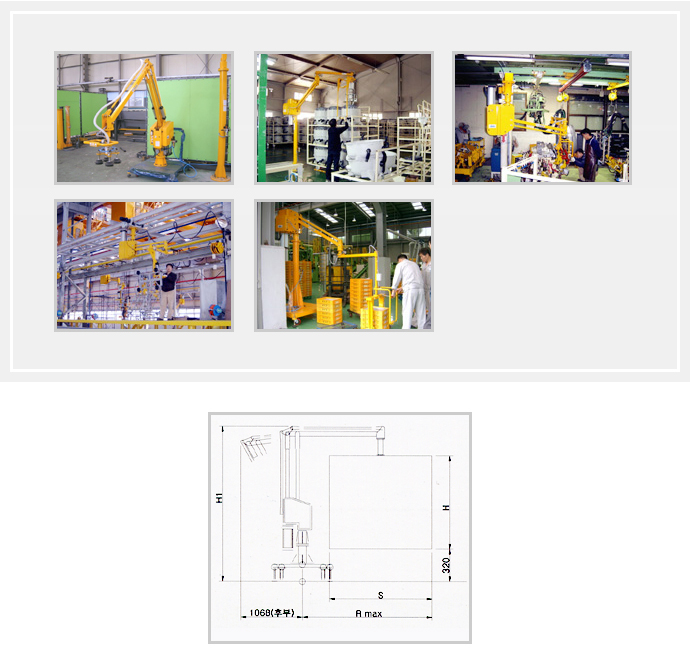

ABF type
- The measurements below can change depending upon the on-site conditions
|
|
MODEL
|
CAPACITY
(kg)
|
MOUNTING
|
H
|
H1
|
S
|
R max
|
Net Weight
kg
|
MOUNT
kg
|
|
ABF-50
|
50
|
fix
·
mobile
|
1600
|
2450
|
1530
|
2350
|
138
|
345
|
|
ABF-75
|
75
|
1600
|
2450
|
1530
|
2350
|
180
|
490
|
|
ABF-150
|
150
|
1600
|
2450
|
1530
|
2350
|
280
|
640
|
|
|
1. Using air pressure over 5.0kgf/cm
2. Capacity indicates the weight of products and fixtures. |
|
|
|
|
|
