1. Offering both of Hoisting and floating at same time as well
as no Jumping Phenomenon also adjustable Precious
Locating up to 400mm both for upward and downward
2. High Speed of 100mm/sec with adjustable Speed by
Control Valve.
3. Automatic Self Floating interlocked with Braking and Lower
Noise Level.
4. Safety Feature by Overload Limit Device.
5. Additional Check Valve for interruption of Air Supply.
6. No Lubrication is required.
|
|
 |
| |
|
MODEL
|
CAPACITY
|
Lift
|
Dia x L(B) of Body
|
|
Kg
|
lbs
|
mm
|
ln
|
mm
|
|
KAB-025-150
|
23
|
50
|
1500
|
60
|
|
|
KAB-070-200
|
68
|
150
|
2000
|
80
|
165 x 405
|
|
KAB-100-300
|
102
|
225
|
3000
|
120
|
254 x 398
|
|
KAB-160-200
|
158
|
350
|
2000
|
80
|
254 x 398
|
|
KAB-230-200
|
227
|
500
|
2000
|
80
|
254 x 532
|
|
|
| * Capacity indicates the weight of products and fixtures. |
 |
 |
| |
 |
|
1. Superior Operational Efficiency and Durability at High
Temperature, Humidity and Moisture.
2. Free Speed Control, Low Noise Level and Vibration.
3. Anti Explosion at Hazardous atmospheres.
4. Lowering by Pneumatic Gravity When Breakdown of Brake
System.
5. Durable Drum Brake for Safety Breaking.
6. Compact Design : Light Weight and Portable.
|
|
|
 |
|
MODEL
|
CAPACITY
(kg)
|
Lift Speed(m/min)
|
Lift
(m)
|
Air
Pressure
(kgf/cm)
|
|
No
|
Load
|
Rated
|
Load
|
|
Up
|
Down
|
Up
|
Down
|
|
KA1S-025
KA1M-025
|
250
|
19
|
16
|
9
|
24
|
3
|
6
|
|

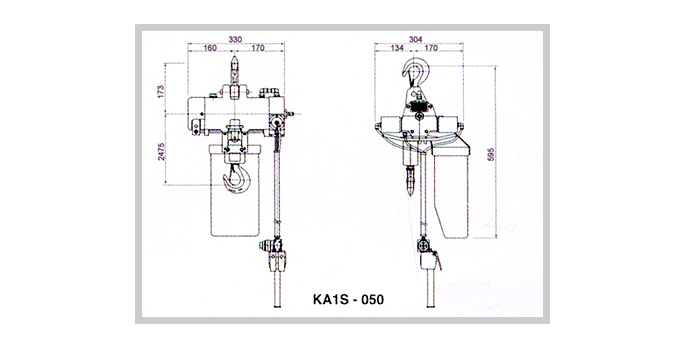

KA1S-050
KA1M-050
|
500
|
12
|
10
|
6
|
15
|
3
|
6
|
|
|
1000
|
6
|
5
|
3
|
75
|
3
|
6
|
|
|
| * Capacity indicates the weight of products and fixtures. |
|
|
|
